Altova MobileTogether Designer

You can run MQTT actions as a service so that the actions run in the background on MobileTogether Server (Advanced Edition only). For example, you could set up a service to subscribe to an MQTT topic (see screenshot below) when some condition on the server is met, such as a time trigger. When a message is received on MobileTogether Server, the service is loaded and the action tree for received MQTT messages is executed.

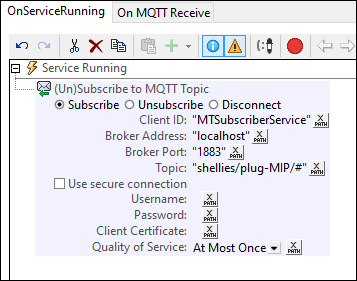

The screenshot below shows the sequence of actions that will be performed when the service is started. These actions are defined in the OnServiceRunning tab. For MQTT services, you can use the additional OnMQTTReceive tab to set the actions to carry out when a subscription message is received.

MTDServicesMQTTOnServiceRunning

For more information about services and their triggers, see the section Server Services.
