Altova MapForce 2024 Enterprise Edition

Extracts the local name part from a value of type xs:QName. Note that, unlike the local-name function which returns the local name of the node, this function processes the content of the item connected to the qname input.

mf-func-local-name-from-qname



Languages

Built-in, C++, C#, Java, XQuery, XSLT 2.0, XSLT 3.0.



Parameters

Name

Description

qname

Mandatory. Provides the function's input value, of type xs:QName.





Example

This function is useful when mapping XBRL instance documents containing hypercubes.

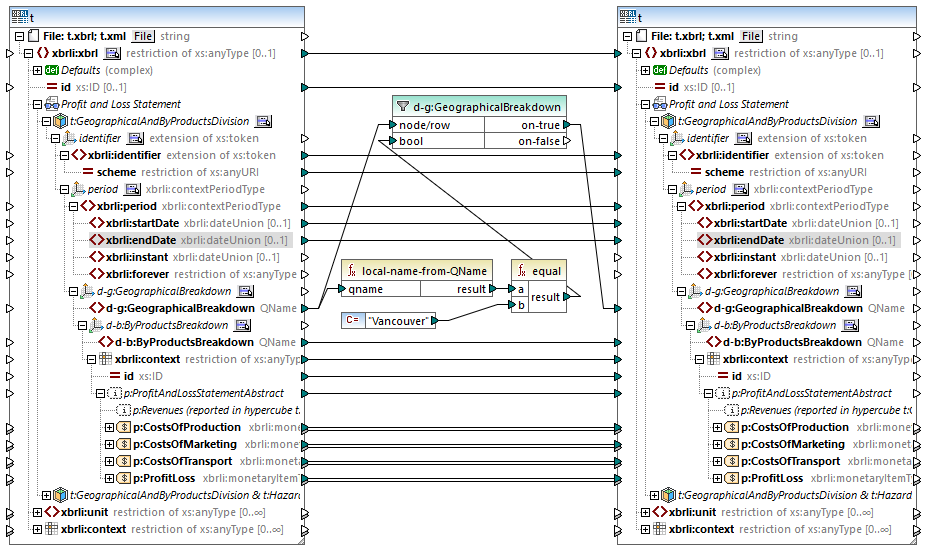

mf-func-local-name-from-qname-example

The mapping above filters those facts where the local name of the content of the explicit member d-g:Vancouver is equal to "Vancouver". Note that the content of the member is itself a QName, as illustrated in the code listing below:



<xbrli:entity>
   <xbrli:identifier scheme="http://nasdaq.com/ticker">ACME2</xbrli:identifier>
  <xbrli:segment>
      <xbrldi:explicitMember dimension="d-b:ByProductsBreakdown">d-b:Water</xbrldi:explicitMember>
      <xbrldi:explicitMember dimension="d-g:GeographicalBreakdown">d-g:Vancouver</xbrldi:explicitMember>
   </xbrli:segment>
</xbrli:entity>



After running the mapping, all the facts that belong to the dimension GeographicalBreakdown are filtered and passed to the target component.
