JSON Schema Version
A JSON schema is written in JSON syntax and will be saved typically in a file with a .json extension. It is indicated as a JSON schema by the \$schema keyword, which should be the first keyword of the top-level object and have a value that is the URI of the JSON schema version you want to use. Here are two examples showing how to use the \$schema keyword:
{
"\$schema": "http://json-schema.org/draft-07/schema#",
...
}
{
"\$schema": "http://json-schema.org/schema#",
...
}
In the first example above, the schema version is explicitly named. Instead of explicitly selecting a version, you can use "http://json-schema.org/schema#", as in the second example above. This indicates that the schema version to be used is the latest version (currently 2020-12 and 2019-09-hyper).

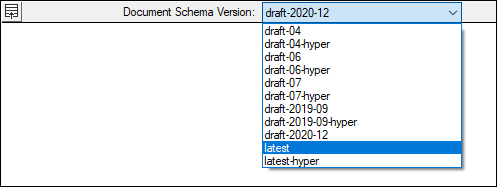

In JSON Schema View, you can change the version in the combo box in the bar at the top of the main window (see screenshot below).
Features of new schema versions that are not defined in an older version
If you use a feature of a newer schema version and then switch to an older version that does not support this feature, then the following happens:
•A message appears asking whether you wish to remove/convert the feature or keep the feature
•If kept, the new feature's corresponding component or detail is shown in an orange text color. For example, if a value has been set for the const keyword (new in draft-06) and you switch the schema version to draft-04, then the value of the const keyword is displayed in orange.
JSON Schema versions
For information about the JSON Schema specifications, especially about additional features with each version, see the links below:
JSON Schema specification: http://json-schema.org/specification.html
Draft-06 release notes: http://json-schema.org/draft-06/json-schema-release-notes.html
Draft-07 release notes: http://json-schema.org/draft-07/json-schema-release-notes.html
Draft 2019-09 (formerly Draft-08): http://json-schema.org/specification-links.html#2019-09-formerly-known-as-draft-8
Draft 2020-12: http://json-schema.org/specification-links.html#2020-12
Additionally, the following Hyper Schemas are available: draft-04-hyper, draft-06-hyper, draft-07-hyper, 2019-09-hyper.
Links to the core schemas and hyper schemas are available here: http://json-schema.org/specification-links.html.
