Altova UModel 2025 Enterprise Edition

UModelAPI - IUMLStereotype

Interface IUMLStereotype

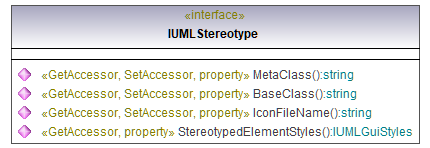

diagram

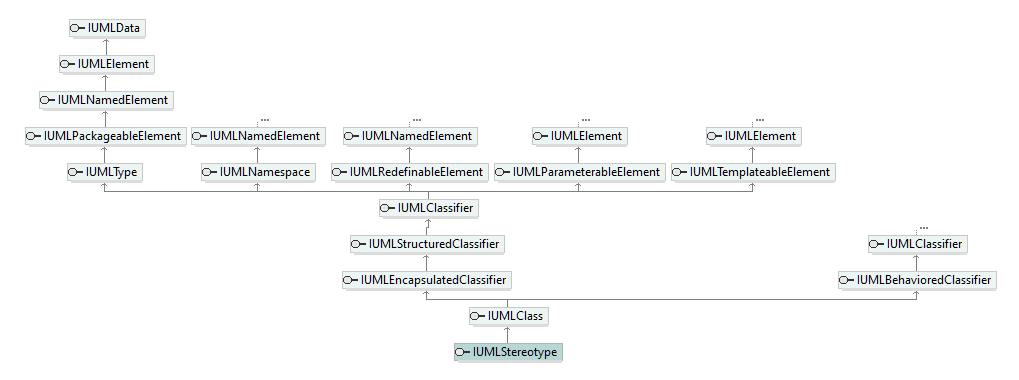

hierarchy

typedElements

Interface IUMLDataAll	Operation	ApplyStereotype GetStereotypeApplicationForStereotype IsStereotypeApplied Stereotype UnapplyStereotype
Interface IUMLElement	Operation	ApplyStereotype GetStereotypeApplicationForStereotype IsStereotypeApplied UnapplyStereotype
Interface IUMLStereotypeApplication	Operation	Stereotype

Operation IUMLStereotype::BaseClass

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLStereotype::IconFileName

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLStereotype::MetaClass

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLStereotype::StereotypedElementStyles

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiStyles

UML documentation generated by UModel UML Editor https://www.altova.com/umodel

Wed Sep 25 10:33:04 2024
