UModelAPI - IUMLProperty

Zur Startseite Zurück Nach oben Weiter

Interface IUMLProperty

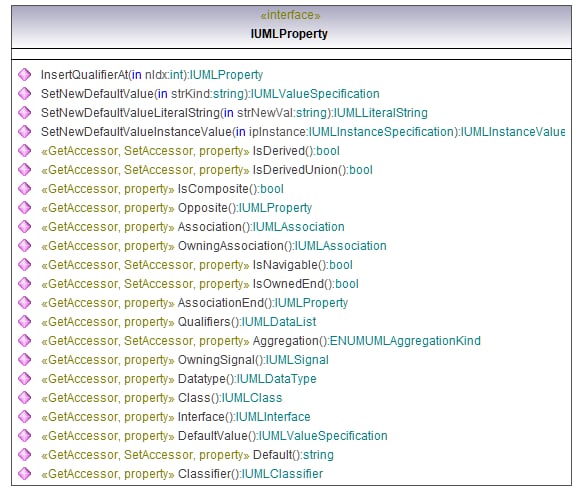

diagram

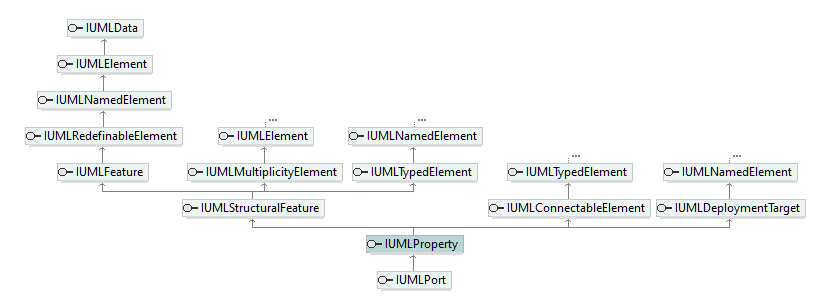

hierarchy

typedElements

Interface IUMLArtifact	Operation	InsertOwnedAttributeAt
Interface IUMLDataAll	Operation	AssociationEnd InsertOwnedAttributeAt InsertQualifierAt Opposite OwningProperty
Interface IUMLDataType	Operation	InsertOwnedAttributeAt
Interface IUMLInterface	Operation	InsertOwnedAttributeAt
Interface IUMLProperty	Operation	AssociationEnd InsertQualifierAt Opposite
Interface IUMLSignal	Operation	InsertOwnedAttributeAt
Interface IUMLStructuredClassifier	Operation	InsertOwnedAttributeAt
Interface IUMLValueSpecification	Operation	OwningProperty

Operation IUMLProperty::Aggregation

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLAggregationKind

Operation IUMLProperty::Association

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLAssociation

Operation IUMLProperty::AssociationEnd

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProperty

Operation IUMLProperty::Class

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClass

Operation IUMLProperty::Classifier

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClassifier

Operation IUMLProperty::Datatype

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataType

Operation IUMLProperty::Default

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLProperty::DefaultValue

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLValueSpecification

Operation IUMLProperty::InsertQualifierAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLProperty

Operation IUMLProperty::Interface

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLInterface

Operation IUMLProperty::IsComposite

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLProperty::IsDerived

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLProperty::IsDerivedUnion

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLProperty::IsNavigable

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLProperty::IsOwnedEnd

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLProperty::Opposite

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProperty

Operation IUMLProperty::OwningAssociation

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLAssociation

Operation IUMLProperty::OwningSignal

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLSignal

Operation IUMLProperty::Qualifiers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLProperty.

Operation IUMLProperty::SetNewDefaultValue

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLValueSpecification

Operation IUMLProperty::SetNewDefaultValueInstanceValue

parameter

name	direction	type	type modifier	multiplicity	default
ipInstance	in	IUMLInstanceSpecification
return	return	IUMLInstanceValue

Operation IUMLProperty::SetNewDefaultValueLiteralString

parameter

name	direction	type	type modifier	multiplicity	default
strNewVal	in	string
return	return	IUMLLiteralString
