Altova UModel 2025 Enterprise Edition

Interface IUMLStateMachine

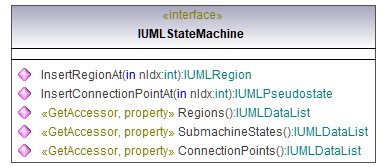

diagram

UModelAPI_diagrams/UModelAPI_p543.png

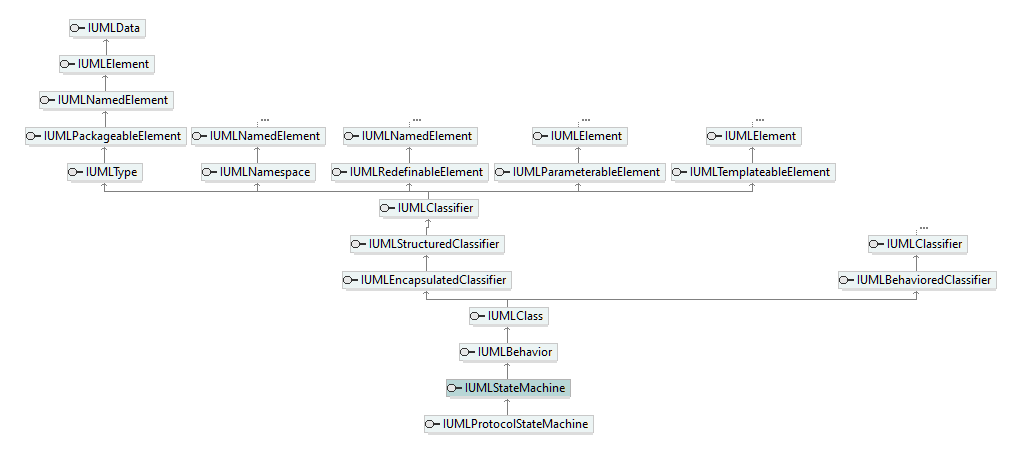

hierarchy

UModelAPI_diagrams/UModelAPI_p544.png

typedElements

Interface IDocument

Operation

GenerateStateMachineCode

Interface IUMLDataAll

Operation

StateMachine Submachine

Interface IUMLPseudostate

Operation

StateMachine

Interface IUMLRegion

Operation

StateMachine

Interface IUMLState

Operation

Submachine



Operation IUMLStateMachine::ConnectionPoints

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLPseudostate.



Operation IUMLStateMachine::InsertConnectionPointAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLPseudostate









Operation IUMLStateMachine::InsertRegionAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLRegion









Operation IUMLStateMachine::Regions

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLRegion.



Operation IUMLStateMachine::SubmachineStates

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLState.
