UModelAPI - IGenerateSequenceDiagramDlg

Zur Startseite Zurück Nach oben Weiter

Interface IGenerateSequenceDiagramDlg

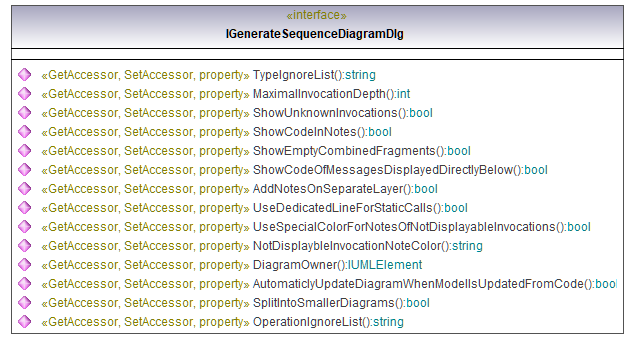

diagram

hierarchy

typedElements

Interface IDialogs	Operation	GenerateSequenceDiagramDlg
Interface IDocument	Operation	GenerateSequenceDiagram

Operation IGenerateSequenceDiagramDlg::AddNotesOnSeparateLayer

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::AutomaticlyUpdateDiagramWhenModelIsUpdatedFromCode

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::DiagramOwner

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLElement

Operation IGenerateSequenceDiagramDlg::MaximalInvocationDepth

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IGenerateSequenceDiagramDlg::NotDisplaybleInvocationNoteColor

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IGenerateSequenceDiagramDlg::OperationIgnoreList

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IGenerateSequenceDiagramDlg::ShowCodeInNotes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::ShowCodeOfMessagesDisplayedDirectlyBelow

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::ShowEmptyCombinedFragments

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::ShowUnknownInvocations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::SplitIntoSmallerDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::TypeIgnoreList

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IGenerateSequenceDiagramDlg::UseDedicatedLineForStaticCalls

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateSequenceDiagramDlg::UseSpecialColorForNotesOfNotDisplayableInvocations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool
