Altova UModel 2025 Enterprise Edition

Interface IUMLGuiNodeLink

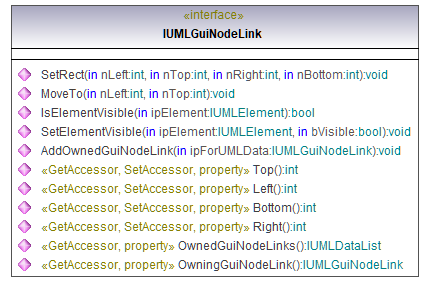

diagram

UModelAPI_diagrams/UModelAPI_p319.png

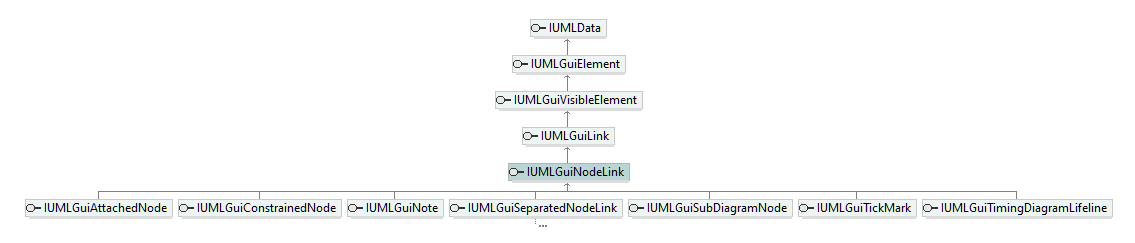

hierarchy

UModelAPI_diagrams/UModelAPI_p320.png

typedElements

documentation

A GuiNodeLink represents a graphical object on a diagram which usually represents an element from the UML (for example a Class, an Interface or a Lifeline). It has a position defined by a rectangle which can be positioned freely on the diagram.

A GuiNodeLink can itself contain other GuiNodeLinks, for example when displaying a big state in a state machine diagam which contains other, smaller substates.

Additionally, if the GuiNodeLink displays cells on it, like for example operations and properties on a class, it can store for each element shown if the element should be visible or not. Use the SetElementVisible and IsElementVisible functions for this.



Operation IUMLGuiNodeLink::AddOwnedGuiNodeLink

parameter

name

direction

type

type modifier

multiplicity

default

ipForUMLData

in

IUMLGuiNodeLink







return

return

void









Operation IUMLGuiNodeLink::Bottom

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiNodeLink::IsElementVisible

parameter

name

direction

type

type modifier

multiplicity

default

ipElement

in

IUMLElement







return

return

bool









Operation IUMLGuiNodeLink::Left

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiNodeLink::MoveTo

parameter

name

direction

type

type modifier

multiplicity

default

nLeft

in

int







nTop

in

int







return

return

void









Operation IUMLGuiNodeLink::OwnedGuiNodeLinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

Returns a list of all owned gui node links, all nodes which are directly contained in this node. All elements in this list are of type (or subtype of) IUMLGuiLink.



Operation IUMLGuiNodeLink::OwningGuiNodeLink

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiNodeLink









Operation IUMLGuiNodeLink::Right

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiNodeLink::SetElementVisible

parameter

name

direction

type

type modifier

multiplicity

default

ipElement

in

IUMLElement







bVisible

in

bool







return

return

void









Operation IUMLGuiNodeLink::SetRect

parameter

name

direction

type

type modifier

multiplicity

default

nLeft

in

int







nTop

in

int







nRight

in

int







nBottom

in

int







return

return

void









Operation IUMLGuiNodeLink::Top

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int
