Altova UModel 2025 Enterprise Edition

Interface IUMLGuiConstrainedNode

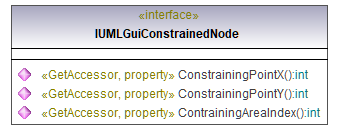

diagram

UModelAPI_diagrams/UModelAPI_p289.png

hierarchy

UModelAPI_diagrams/UModelAPI_p290.png

documentation

This node link is used to represent objects on diagrams which can be directly attached to a parent node link and placed relatively to and in special constraining areas of the parent. Used for example for Pins on Activtiy Diagrams.



Operation IUMLGuiConstrainedNode::ConstrainingPointX

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int







documentation

X coordinate relative to the uppor left position of the contraining area.



Operation IUMLGuiConstrainedNode::ConstrainingPointY

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int







documentation

Y coordinate relative to the uppor left position of the contraining area.



Operation IUMLGuiConstrainedNode::ContrainingAreaIndex

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int







documentation

Defines the index of the area where this node is currently in and to which its relative position has its origin.
