Interface IUMLGuiVisibleElement

diagram

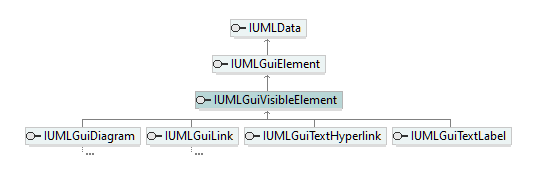

hierarchy

typedElements

Interface IUMLCommentTextHyperlink	Operation	SetHyperlinkGuiElementAddress
Interface IUMLDataAll	Operation	InsertOwnedHyperlink2GuiElementAt LinkedGuiElement SetHyperlinkGuiElementAddress
Interface IUMLGuiTextHyperlink	Operation	SetHyperlinkGuiElementAddress
Interface IUMLHyperlink2GuiElement	Operation	LinkedGuiElement
Interface IUMLNamedElement	Operation	InsertOwnedHyperlink2GuiElementAt

documentation

The IUMLGuiVisibleElement is the base interface for most visible elements which can be placed on UModel diagrams. Visible elements have a style with which it is possible to infliuence its color and/or shape, depending on the actual type of the visible element.

Operation IUMLGuiVisibleElement::Styles

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiStyles
