Interface IUMLActivityPartition

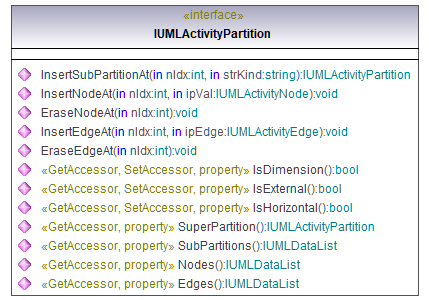

diagram

hierarchy

typedElements

Interface IUMLActivityPartition	Operation	InsertSubPartitionAt SuperPartition
Interface IUMLDataAll	Operation	InsertSubPartitionAt SuperPartition

Operation IUMLActivityPartition::Edges

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityEdge.

Operation IUMLActivityPartition::EraseEdgeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	void

Operation IUMLActivityPartition::EraseNodeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	void

Operation IUMLActivityPartition::InsertEdgeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipEdge	in	IUMLActivityEdge
return	return	void

Operation IUMLActivityPartition::InsertNodeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipVal	in	IUMLActivityNode
return	return	void

Operation IUMLActivityPartition::InsertSubPartitionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strKind	in	string
return	return	IUMLActivityPartition

Operation IUMLActivityPartition::IsDimension

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLActivityPartition::IsExternal

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLActivityPartition::IsHorizontal

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLActivityPartition::Nodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityNode.

Operation IUMLActivityPartition::SubPartitions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityPartition.

Operation IUMLActivityPartition::SuperPartition

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLActivityPartition
