Altova UModel 2025 Enterprise Edition

UModelAPI - IUMLInstanceSpecification

Interface IUMLInstanceSpecification

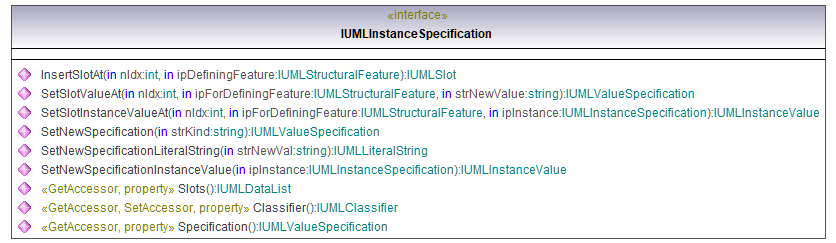

diagram

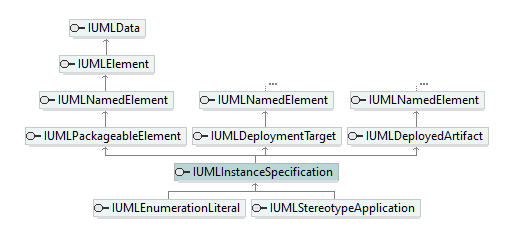

hierarchy

typedElements

Interface IUMLConstraint	Operation	SetNewSpecificationInstanceValue
Interface IUMLDataAll	Operation	InsertSlotInstanceValueAt Instance OwningInstance OwningInstanceSpec SetNewDefaultValueInstanceValue SetNewSpecificationInstanceValue SetSlotInstanceValueAt
Interface IUMLInstanceSpecification	Operation	SetNewSpecificationInstanceValue SetSlotInstanceValueAt
Interface IUMLInstanceValue	Operation	Instance
Interface IUMLParameter	Operation	SetNewDefaultValueInstanceValue
Interface IUMLProperty	Operation	SetNewDefaultValueInstanceValue
Interface IUMLSlot	Operation	InsertSlotInstanceValueAt OwningInstance
Interface IUMLValueSpecification	Operation	OwningInstanceSpec

Operation IUMLInstanceSpecification::Classifier

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClassifier

Operation IUMLInstanceSpecification::InsertSlotAt

parameter

Operation IUMLInstanceSpecification::SetNewSpecification

parameter

Operation IUMLInstanceSpecification::SetNewSpecificationInstanceValue

parameter

name	direction	type	type modifier	multiplicity	default
ipInstance	in	IUMLInstanceSpecification
return	return	IUMLInstanceValue

Operation IUMLInstanceSpecification::SetNewSpecificationLiteralString

parameter

Operation IUMLInstanceSpecification::SetSlotInstanceValueAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipForDefiningFeature	in	IUMLStructuralFeature
ipInstance	in	IUMLInstanceSpecification
return	return	IUMLInstanceValue

Operation IUMLInstanceSpecification::SetSlotValueAt

parameter

Operation IUMLInstanceSpecification::Slots

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLSlot.

Operation IUMLInstanceSpecification::Specification

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLValueSpecification
