Interface IUMLInteraction

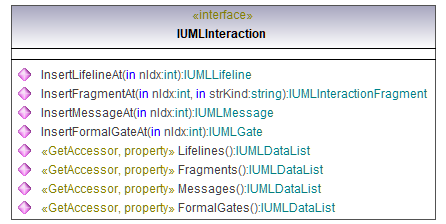

diagram

UModelAPI_diagrams/UModelAPI_p411.png

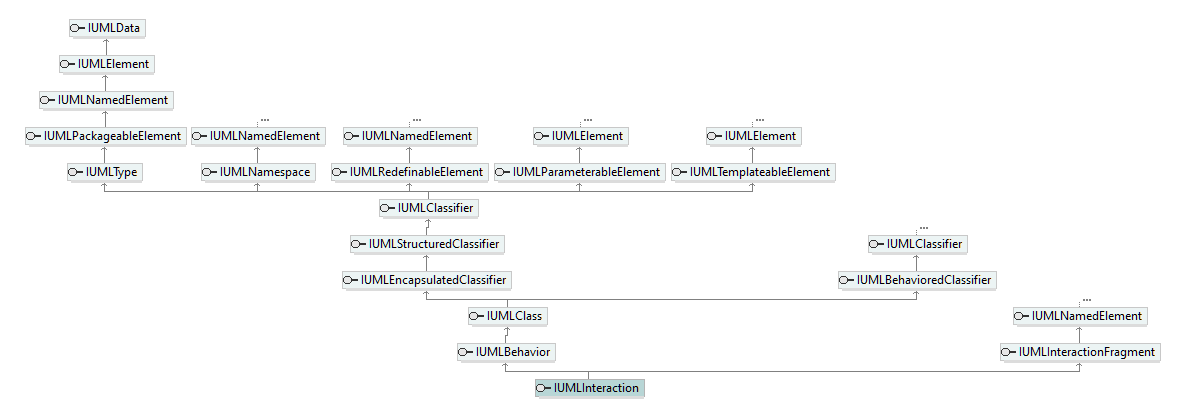

hierarchy

UModelAPI_diagrams/UModelAPI_p412.png

typedElements

Interface IUMLDataAll

Operation

RefersTo

Interface IUMLInteractionUse

Operation

RefersTo



Operation IUMLInteraction::FormalGates

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLGate.



Operation IUMLInteraction::Fragments

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLInteractionFragment.



Operation IUMLInteraction::InsertFormalGateAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLGate









Operation IUMLInteraction::InsertFragmentAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







return

return

IUMLInteractionFragment









Operation IUMLInteraction::InsertLifelineAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLLifeline









Operation IUMLInteraction::InsertMessageAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLMessage









Operation IUMLInteraction::Lifelines

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLLifeline.



Operation IUMLInteraction::Messages

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLMessage.
