UModelAPI - IUMLLifeline

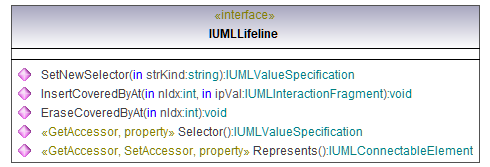

Interface IUMLLifeline

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	Covered GetSourceLifeline GetTargetLifeline InsertLifelineAt
Interface IUMLInteraction	Operation	InsertLifelineAt
Interface IUMLMessage	Operation	GetSourceLifeline GetTargetLifeline
Interface IUMLOccurrenceSpecification	Operation	Covered
Interface IUMLStateInvariant	Operation	Covered

Operation IUMLLifeline::EraseCoveredByAt

parameter

Operation IUMLLifeline::InsertCoveredByAt

parameter

Operation IUMLLifeline::Represents

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConnectableElement

Operation IUMLLifeline::Selector

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLValueSpecification

Operation IUMLLifeline::SetNewSelector

parameter
