UModelAPI - IUMLGuiTextHyperlink

Zur Startseite Zurück Nach oben Weiter

Interface IUMLGuiTextHyperlink

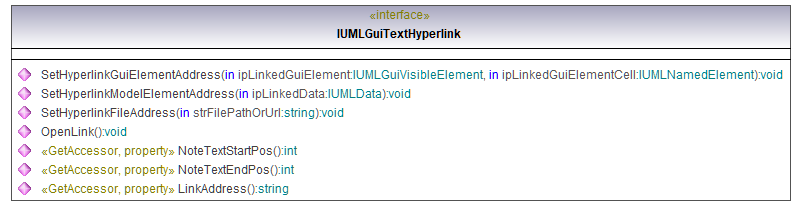

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	InsertOwnedGuiTextHyperlinkAt
Interface IUMLGuiDiagram	Operation	InsertOwnedGuiTextHyperlinkAt
Interface IUMLGuiNote	Operation	InsertOwnedGuiTextHyperlinkAt

documentation

Text Hyperlinks store an URL together with a begin and an end number referencing positions in some text. Any text between a such a begin and end position is displayed as hyperlink and triggers UModel to open the URL when clicked. This is used in IUMLGuiNote to create hyperlinks inside of the text comment for example.

Operation IUMLGuiTextHyperlink::LinkAddress

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLGuiTextHyperlink::NoteTextEndPos

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTextHyperlink::NoteTextStartPos

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTextHyperlink::OpenLink

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IUMLGuiTextHyperlink::SetHyperlinkFileAddress

parameter

name	direction	type	type modifier	multiplicity	default
strFilePathOrUrl	in	string
return	return	void

Operation IUMLGuiTextHyperlink::SetHyperlinkGuiElementAddress

parameter

name	direction	type	type modifier	multiplicity	default
ipLinkedGuiElement	in	IUMLGuiVisibleElement
ipLinkedGuiElementCell	in	IUMLNamedElement
return	return	void

Operation IUMLGuiTextHyperlink::SetHyperlinkModelElementAddress

parameter

name	direction	type	type modifier	multiplicity	default
ipLinkedData	in	IUMLData
return	return	void
