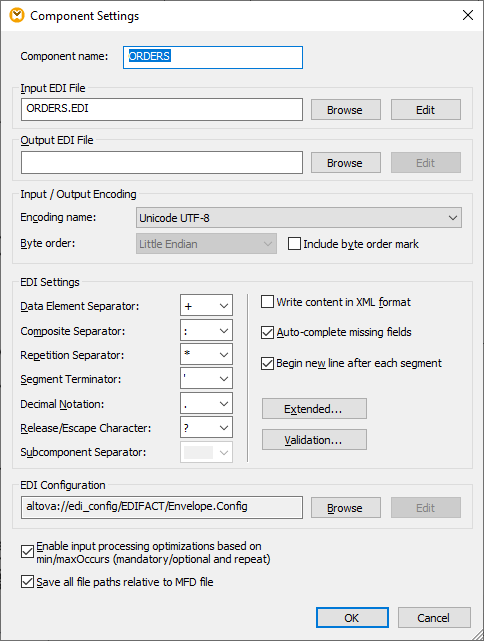

The component name is automatically generated when you create a component. However, you can change the name at any time. The component name can contain spaces and full stops. It may not contain slashes, backslashes, colons, double quotes, leading and trailing spaces. If you want to change the name of the component, be aware of the following:

•If you intend to deploy the mapping to FlowForce Server, the component name must be unique.

•It is recommended to use only characters that can be entered at the command line. National characters may have a different encoding in Windows and at the command line.

Specifies the EDI source file from which MapForce will read data.

Specifies the EDI target file to which MapForce will write data.

This section allows you to specify the following settings of the output instance file: encoding, byte order, and whether the byte order mark (BOM) character should be included. By default, any new components have the encoding defined in the Default encoding for new components option. You can access this option in Tools | Options | General. For details, see Options.

EDI delimeters

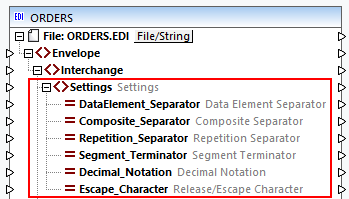

This group of settings enables you to define EDI delimiters (e.g., segment terminators, data element separators). Note that the settings are available only if they are supported by the EDI format you are using. The EDI delimiters entered in this dialog box always take effect when MapForce writes EDI files. When MapForce reads EDI files, the delimiters take effect only if the input file does not define/contain its own delimiters (e.g., EDIFACT files without the UNA segment).

If an EDI input component/file contains delimiter definitions (e.g., an X12 file with an ISA segment), the existing separators override any delimiters defined in the Component Settings dialog box for that file. You can use non-printable characters as separators, by typing x followed by the hexadecimal ASCII character code into one of the combo boxes: e.g., x1e for the RS control character (ASCII record separator, decimal code 30).

The Subcomponent Separator applies to the HL7 standard. The default value of this separator is the ampersand ( & ).

Write content in XML format

Selecting this check box is meaningful only for a target EDI component. This option generates XML output. For details, see Quick EDI-To-XML Conversion.

Auto-complete missing fields

This option applies to target EDI components. When this check box is selected, MapForce fills in the values of some data fields automatically. This applies only to those fields where this operation would not contradict the specification of the currently selected EDI format.

Begin new line after each segment

This option applies to target EDI components. When the check box is selected, MapForce adds a CR/LF (carriage return/line feed) character after each EDI segment. The EDI standard ignores these lines if they are present in a message.

Extended

Opens a dialog box where you can define additional settings for the current EDI component. The available settings vary, depending on the type of EDI component.

Validation

Opens a dialog box where you can define validation settings for the current EDI component. For details, see EDI Validation.

Provides information about the EDI configuration (EDI Collection) used by the current component. If this path begins with altova://edi_config/, MapForce will look for the configuration in the following directories (the order is important):

1.C:\Users\<name>\Documents\Altova\MapForce2025\MapForceEDI

2.C:\Program Files\Altova\MapForce2025\MapForceEDI

If the configuration is in the Documents directory, this configuration takes precedence over the one in the application folder. If the EDI Configuration property refers to a path different from the ones listed above, the EDI collection at this path will be used by the component.

This option allows special handling of sequences that have only one item (e.g., mandatory attributes and child elements with minOccurs and maxOccurs="1"). In this case, the first item of the sequence is extracted, and the item is then directly processed as an atomic value (and not as a sequence).

If the input data is not valid against the schema, the mapping will cause an error. To allow the processing of invalid input, clear this check box.

When this option is enabled, MapForce saves the file paths displayed in the Component Settings dialog box, relative to the location of the MapForce Design (.mfd) file. This setting affects the following files:

•The input EDI file (if present)

•The output EDI file (if present)

See also Relative and Absolute Paths.
