Step 4: Create the Target MapForce Component

Home Prev Top Next

To create the target component for use with the FlexText source:



1.Select Insert | Text file, or click the Insert Text file icon ic-text.

2.Click the "Use simple processing..." radio button and click Continue. This opens the Component Settings dialog box.

3.Click the Append Field button to add a new field.

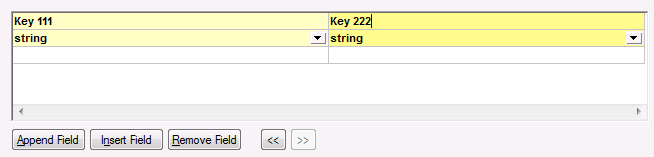

4.Double click the Field1 field name and change it to Key 111.

FlexTutorialStep4-01

5.Do the same for the other field, and name it Key 222 and click OK to confirm. A text component with two fields has now been created.

flex-tut-target2

6.Use the same method to create a second text component that consists of five fields.

flex-tut-target3
