Altova DatabaseSpy 2023 Enterprise Edition

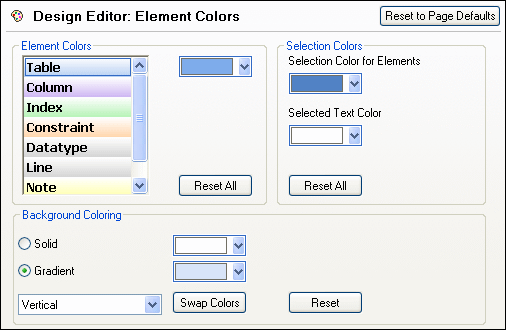

The Colors section of the Options dialog box lets you configure colors for objects in the Design Editor.

dlg_options-design-colors



Element Colors

Specify the color that is used for displaying each element in the Properties windows. Select an element from the list and choose a color for it from the drop-down list. Click the Reset All button to restore the original settings.



Selection Colors

Define the colors for selected elements and text. Click the Reset All button to restore the original settings.



Background Coloring

Defines the appearance of Design Editor's background. Choose between solid and gradient background and specify the colors and the way they are used in the gradient.
