Altova DatabaseSpy 2023 Enterprise Edition

Navigation: Tutorials > "ZooDB" Database > Adding Tables to the Database

Generating a CREATE Statement

You can also generate SQL statements based on an existing table or column. In this step, we will generate a CREATE statement from the table tblZookeepers, edit the statement, and use it to create a new table tblEmployees.

To add a table by editing a CREATE statement generated from an existing table:

1.Open the "ZooDB" project created previously and double-click the dbs_ic_connected ZooDBConnect data source to connect to it.

2.In the Online Browser, right-click the tblZookeepers table.

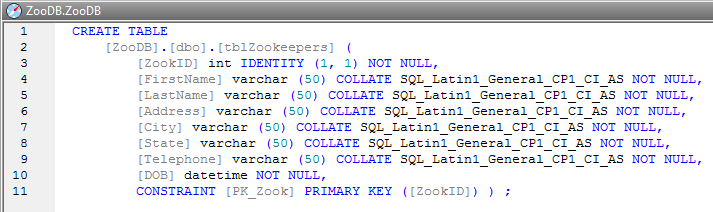

3.Select the menu option Show in new SQL Editor | Create from the context menu. An SQL Editor window appears, displaying the following SQL statement:

4.Edit the statement as shown below to create tblEmployees. The parts of the statement that need to be changed are marked using underlined, italic text:

CREATE TABLE
[ZooDB].[dbo].[tblEmployees] (
[EmployeeID] int IDENTITY (1, 1) NOT NULL,
[FirstName] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[LastName] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[Address] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[City] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[State] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[Telephone] varchar (50) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
[DOB] datetime NOT NULL,
CONSTRAINT [PK_Employee] PRIMARY KEY ([EmployeeID]) ) ;

5.Click the Execute ic_execute-sql button or press F5.In the Online Browser, right-click the ZooDB database and select Refresh from the context menu, or click the Refresh ic_refresh-datasource button.

The newly inserted table, tblEmployees, is displayed along with the tables that you created earlier.
