Altova XMLSpy 2025 Enterprise Edition

SOAP Debugger Session

Home Prev Top Next

This command starts/stops a SOAP debugger session.



When you start a debugger session, the following happens:



1.A dialog box opens, in which you select a WSDL file. You can also select the file via a global resource (click the Global Resource button and browse) or one of the open windows of XMLSpy.

2.In the next dialog box, select the source and target ports needed for the debugger proxy server and the web service.

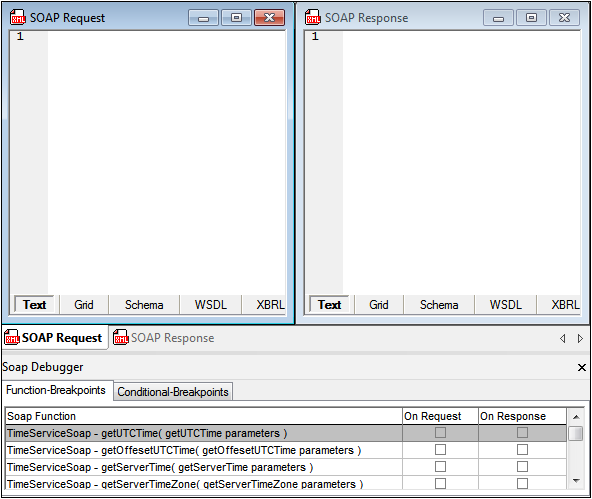

The SOAP Debugger starts in its inactive state (screenshot below), and you can operate it via its buttons in the toolbar (by default at top left of the app window). Start the debugger via the toolbar and wait for the client requests to be processed. For a detailed description, see the SOAP section.

SOAPDebuggerOview

To stop the debugger session, select this command again or click the toolbar icon End SOAP Debugger Session.
