UModelAPI - IUMLValueSpecification

Home Prev Top Next

Interface IUMLValueSpecification

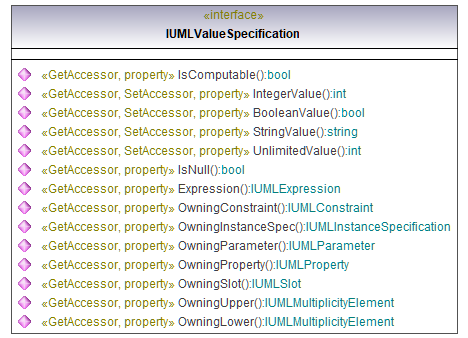

diagram

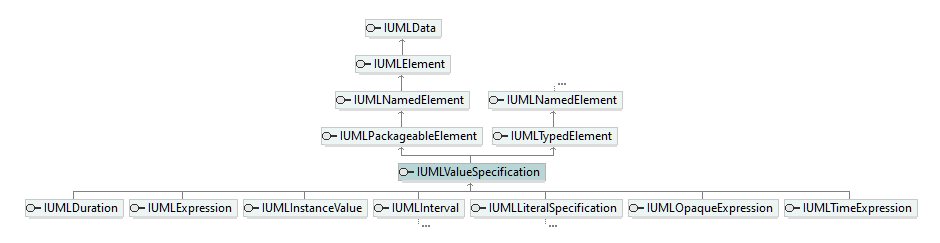

hierarchy

typedElements

Interface IUMLChangeEvent	Operation	ChangeExpression SetNewChangeExpression
Interface IUMLConstraint	Operation	SetNewSpecification Specification
Interface IUMLDataAll	Operation	ActionValue ChangeExpression DefaultValue Expr InsertOwnedArgumentAt InsertValueAt Max MaxInt Min MinInt Selector SetNewActionValue SetNewChangeExpression SetNewDefaultValue SetNewExpr SetNewMax SetNewMaxInt SetNewMin SetNewMinInt SetNewSelector SetNewSpecification SetPredefinedTaggedValueAt SetSlotValueAt SetTaggedValueAt Specification
Interface IUMLDuration	Operation	Expr SetNewExpr
Interface IUMLInstanceSpecification	Operation	SetNewSpecification SetSlotValueAt Specification
Interface IUMLInteractionConstraint	Operation	MaxInt MinInt SetNewMaxInt SetNewMinInt
Interface IUMLInterval	Operation	Max Min SetNewMax SetNewMin
Interface IUMLLifeline	Operation	Selector SetNewSelector
Interface IUMLMessage	Operation	InsertOwnedArgumentAt
Interface IUMLParameter	Operation	DefaultValue SetNewDefaultValue
Interface IUMLProperty	Operation	DefaultValue SetNewDefaultValue
Interface IUMLSlot	Operation	InsertValueAt
Interface IUMLStereotypeApplication	Operation	SetPredefinedTaggedValueAt SetTaggedValueAt
Interface IUMLTimeExpression	Operation	Expr SetNewExpr
Interface IUMLValueSpecificationAction	Operation	ActionValue SetNewActionValue

Operation IUMLValueSpecification::BooleanValue

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLValueSpecification::Expression

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLExpression

Operation IUMLValueSpecification::IntegerValue

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLValueSpecification::IsComputable

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLValueSpecification::IsNull

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLValueSpecification::OwningConstraint

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLValueSpecification::OwningInstanceSpec

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLInstanceSpecification

Operation IUMLValueSpecification::OwningLower

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLMultiplicityElement

Operation IUMLValueSpecification::OwningParameter

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLParameter

Operation IUMLValueSpecification::OwningProperty

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProperty

Operation IUMLValueSpecification::OwningSlot

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLSlot

Operation IUMLValueSpecification::OwningUpper

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLMultiplicityElement

Operation IUMLValueSpecification::StringValue

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLValueSpecification::UnlimitedValue

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int
