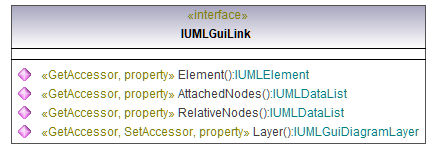

Interface IUMLGuiLink

diagram

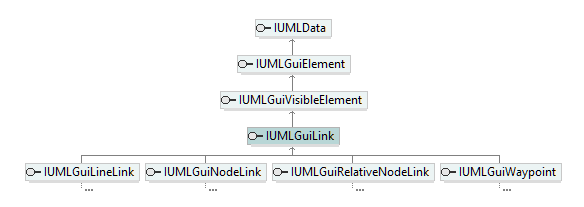

hierarchy

typedElements

Interface IDiagramWindow	Operation	FocusedGuiElement ScrollToGuiElement SelectGuiElement
Interface IUMLDataAll	Operation	AddUMLGuiContainmentLink AttachedTo
Interface IUMLGuiAttachedNode	Operation	AttachedTo
Interface IUMLGuiCommunicationDiagram	Operation	AddUMLGuiCommunicationLink
Interface IUMLGuiDiagram	Operation	AddUMLGuiContainmentLink

documentation

A GuiLink represents a graphical object on a diagram which is connected to an element from the UML (like a Class, an Interface or a Lifeline). This connected object can be accessed using the Element property.

IUMLGuiLinks further can have attached nodes (IUMLGuiAttachedNode) which appear when necessary, like Tagged Values and are associated with a Layer on the diagram.

Operation IUMLGuiLink::AttachedNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

Returns a derived list of all attached nodes of this element. All elements in this list are of type (or subtype) of IUMLGuiAttachedNode.

Operation IUMLGuiLink::Element

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLElement

Operation IUMLGuiLink::Layer

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiDiagramLayer

Operation IUMLGuiLink::RelativeNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

Returns a list of relative nodes to this gui link. The list contains only elements of type (or subtype of) IUMLGuiRelativeNodeLink.

UML documentation generated by UModel UML Editor https://www.altova.com/umodel
