Interface IUMLGuiSeparatedNodeLink2D

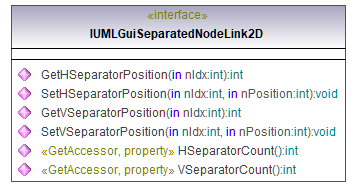

diagram

hierarchy

documentation

This node link represents a graphical object on a UModel diagram which can be separated into parts by one or more horizontal or vertical lines, but in contrast to IUMLGuiSeparatedNodeLink, the node can be subdivided vertically and horizontally at the same time. For each vertical or horizontal separation line, the position of the separator is stored in this node.

This node type is used for example by ActivityPartitions.

Operation IUMLGuiSeparatedNodeLink2D::GetHSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	int

Operation IUMLGuiSeparatedNodeLink2D::GetVSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	int

Operation IUMLGuiSeparatedNodeLink2D::HSeparatorCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiSeparatedNodeLink2D::SetHSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
nPosition	in	int
return	return	void

Operation IUMLGuiSeparatedNodeLink2D::SetVSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
nPosition	in	int
return	return	void

Operation IUMLGuiSeparatedNodeLink2D::VSeparatorCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int
