Expanded Sub Processes
Expanded versions of sub processes show the process detail within the element boundaries.
Expanded Sub-Process | ![]() |

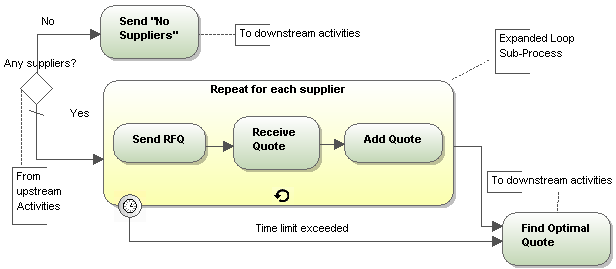

Expanded Loop Sub-Process | ![]() |
Expanded Multi Instance Sub-Process | ![]() |
Expanded Ad Hoc Sub-Process | ![]() |
Expanded Compensation Sub-Process | ![]() |
![bpm-supplier-any](./images/bpm-supplier-any.png)
BPMN 2.0 Expanded Sub Processes
![bp2-exp-sub2](./images/bp2-exp-sub2.png)

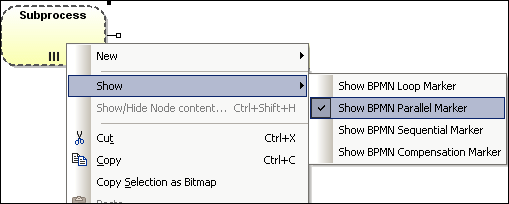

To define a Loop, Parallel, Sequential or Compensation marker:
•Right-click the inserted task and select the specific marker, e.g. Show | Show BPMN Parallel Marker.
![bp2-exp-sub](./images/bp2-exp-sub.png)
