UModelAPI - IDiagramWindow

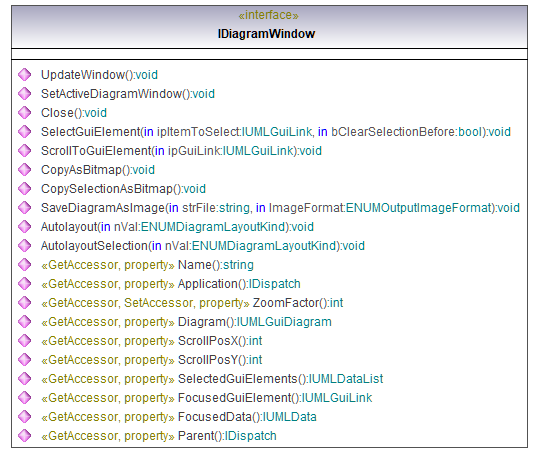

Interface IDiagramWindow

diagram

typedElements

Interface _IDiagramWindowEvents	Operation	OnDiagramWindowClosed
Interface _IDocumentEvents	Operation	OnActivateDiagramWindow OnDiagramWindowClosed OnDiagramWindowOpened
Interface IDiagramWindows	Operation	Item
Interface IDocument	Operation	ActiveDiagramWindow OpenDiagram

Operation IDiagramWindow::Application

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IDispatch

Operation IDiagramWindow::Autolayout

parameter

name	direction	type	type modifier	multiplicity	default
nVal	in	ENUMDiagramLayoutKind
return	return	void

Operation IDiagramWindow::AutolayoutSelection

parameter

name	direction	type	type modifier	multiplicity	default
nVal	in	ENUMDiagramLayoutKind
return	return	void

Operation IDiagramWindow::Close

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IDiagramWindow::CopyAsBitmap

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IDiagramWindow::CopySelectionAsBitmap

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IDiagramWindow::Diagram

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiDiagram

Operation IDiagramWindow::FocusedData

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLData

Operation IDiagramWindow::FocusedGuiElement

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiLink

Operation IDiagramWindow::Name

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IDiagramWindow::Parent

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IDispatch

Operation IDiagramWindow::SaveDiagramAsImage

parameter

name	direction	type	type modifier	multiplicity	default
strFile	in	string
ImageFormat	in	ENUMOutputImageFormat
return	return	void

Operation IDiagramWindow::ScrollPosX

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IDiagramWindow::ScrollPosY

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IDiagramWindow::ScrollToGuiElement

parameter

name	direction	type	type modifier	multiplicity	default
ipGuiLink	in	IUMLGuiLink
return	return	void

Operation IDiagramWindow::SelectedGuiElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLGuiElement.

Operation IDiagramWindow::SelectGuiElement

parameter

name	direction	type	type modifier	multiplicity	default
ipItemToSelect	in	IUMLGuiLink
bClearSelectionBefore	in	bool
return	return	void

Operation IDiagramWindow::SetActiveDiagramWindow

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IDiagramWindow::UpdateWindow

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IDiagramWindow::ZoomFactor

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int
