Interface IUMLClassifier

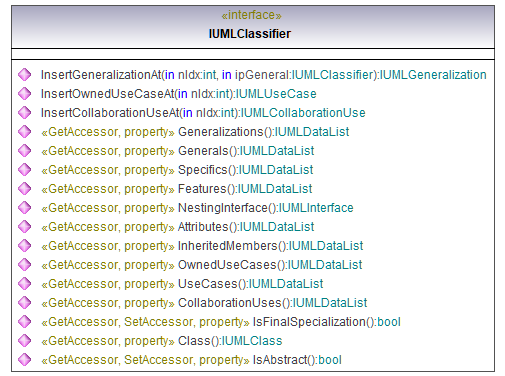

diagram

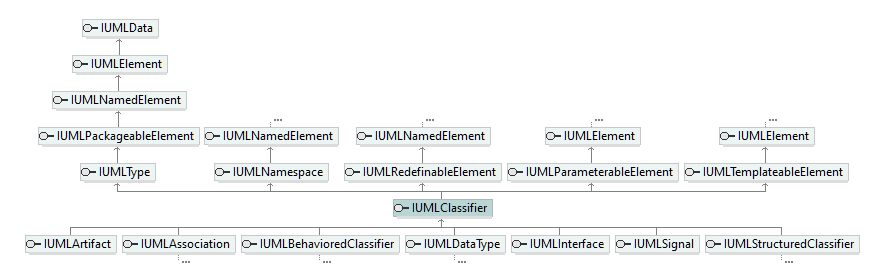

hierarchy

typedElements

Interface IUMLAction	Operation	ActionContext
Interface IUMLClass	Operation	InsertNestedClassifierAt
Interface IUMLClassifier	Operation	InsertGeneralizationAt
Interface IUMLClassifierTemplateParameter	Operation	InsertConstrainingClassifierAt
Interface IUMLComponent	Operation	InsertRealizationAt
Interface IUMLComponentRealization	Operation	RealizingClassifier
Interface IUMLDataAll	Operation	ActionContext Classifier General InsertConstrainingClassifierAt InsertConveyedAt InsertExceptionTypeAt InsertGeneralizationAt InsertNestedClassifierAt InsertRealizationAt InsertSubjectAt RealizingClassifier Specific
Interface IUMLExceptionHandler	Operation	InsertExceptionTypeAt
Interface IUMLGeneralization	Operation	General Specific
Interface IUMLInformationFlow	Operation	InsertConveyedAt
Interface IUMLInstanceSpecification	Operation	Classifier
Interface IUMLInterface	Operation	InsertNestedClassifierAt
Interface IUMLProperty	Operation	Classifier
Interface IUMLUseCase	Operation	InsertSubjectAt

Operation IUMLClassifier::Attributes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLProperty.

Operation IUMLClassifier::Class

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClass

Operation IUMLClassifier::CollaborationUses

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLCollaborationUse.

Operation IUMLClassifier::Features

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLFeature.

Operation IUMLClassifier::Generalizations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLGeneralization.

Operation IUMLClassifier::Generals

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClassifier.

Operation IUMLClassifier::InheritedMembers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLNamedElement.

Operation IUMLClassifier::InsertCollaborationUseAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLCollaborationUse

Operation IUMLClassifier::InsertGeneralizationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipGeneral	in	IUMLClassifier
return	return	IUMLGeneralization

Operation IUMLClassifier::InsertOwnedUseCaseAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLUseCase

Operation IUMLClassifier::IsAbstract

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLClassifier::IsFinalSpecialization

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLClassifier::NestingInterface

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLInterface

Operation IUMLClassifier::OwnedUseCases

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLUseCase.

Operation IUMLClassifier::Specifics

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClassifier.

Operation IUMLClassifier::UseCases

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLUseCase.
