UModelAPI - IUMLBehavior

Interface IUMLBehavior

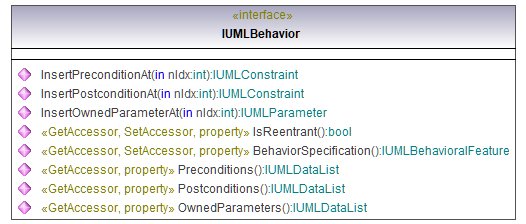

diagram

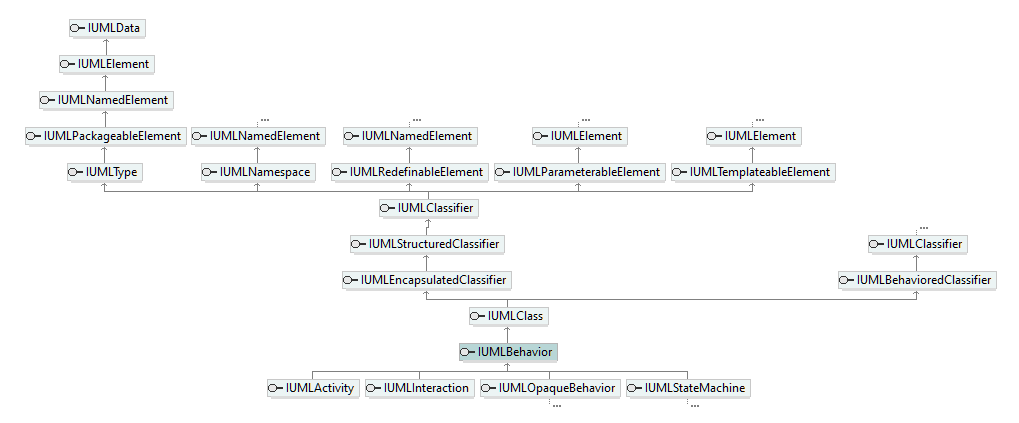

hierarchy

typedElements

Interface IUMLBehavioredClassifier	Operation	InsertOwnedBehaviorAt
Interface IUMLBehaviorExecutionSpecification	Operation	BehaviorExecution
Interface IUMLCallBehaviorAction	Operation	Behavior
Interface IUMLDataAll	Operation	Behavior BehaviorExecution DecisionInput DoActivity Effect Entry Exit InsertOwnedBehaviorAt Selection SetNewDoActivity SetNewEffect SetNewEntry SetNewExit Transformation
Interface IUMLDecisionNode	Operation	DecisionInput
Interface IUMLObjectFlow	Operation	Transformation
Interface IUMLObjectNode	Operation	Selection
Interface IUMLState	Operation	DoActivity Entry Exit SetNewDoActivity SetNewEntry SetNewExit
Interface IUMLTransition	Operation	Effect SetNewEffect

Operation IUMLBehavior::BehaviorSpecification

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavioralFeature

Operation IUMLBehavior::InsertOwnedParameterAt

parameter

Operation IUMLBehavior::InsertPostconditionAt

parameter

Operation IUMLBehavior::InsertPreconditionAt

parameter

Operation IUMLBehavior::IsReentrant

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLBehavior::OwnedParameters

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLParameter.

Operation IUMLBehavior::Postconditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.

Operation IUMLBehavior::Preconditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.
