UModelAPI - IUMLObjectNode

Interface IUMLObjectNode

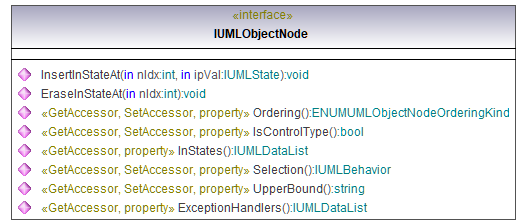

diagram

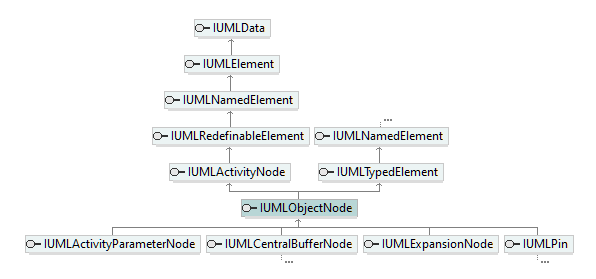

hierarchy

typedElements

Interface IUMLDataAll	Operation	ExceptionInput
Interface IUMLExceptionHandler	Operation	ExceptionInput

Operation IUMLObjectNode::EraseInStateAt

parameter

Operation IUMLObjectNode::ExceptionHandlers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLExceptionHandler.

Operation IUMLObjectNode::InsertInStateAt

parameter

Operation IUMLObjectNode::InStates

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLState.

Operation IUMLObjectNode::IsControlType

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLObjectNode::Ordering

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLObjectNodeOrderingKind

Operation IUMLObjectNode::Selection

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLObjectNode::UpperBound

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string
