UModelAPI - IUMLGuiTimingDiagramMessage

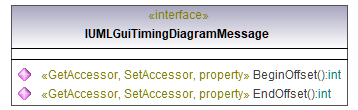

Interface IUMLGuiTimingDiagramMessage

diagram
hierarchy
documentation	A IUMLGuiTimingDiagramMessage is a line usually connecting two IUMLGuiTimingDiagramLifelines. For each lifeline on one of its ends, it stores its position from the start of the state or general value compartement.

Operation IUMLGuiTimingDiagramMessage::BeginOffset

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTimingDiagramMessage::EndOffset

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int
