Altova UModel 2025

UModelAPI - IUMLAction

Interface IUMLAction

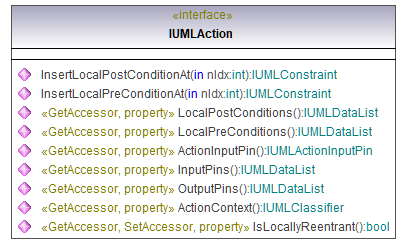

diagram

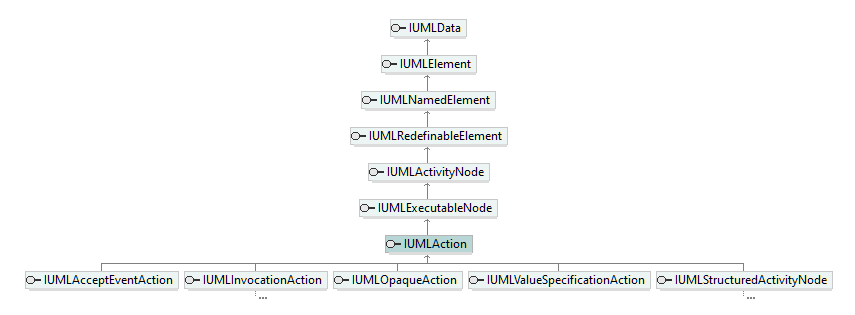

hierarchy

Operation IUMLAction::ActionContext

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClassifier

Operation IUMLAction::ActionInputPin

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLActionInputPin

Operation IUMLAction::InputPins

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLInputPin.

Operation IUMLAction::InsertLocalPostConditionAt

parameter

Operation IUMLAction::InsertLocalPreConditionAt

parameter

Operation IUMLAction::IsLocallyReentrant

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLAction::LocalPostConditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.

Operation IUMLAction::LocalPreConditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.

Operation IUMLAction::OutputPins

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLOutputPin.
