UModelAPI - IUMLGuiSeparatedNodeLink

Inicio Anterior Inicio Siguiente

Interface IUMLGuiSeparatedNodeLink

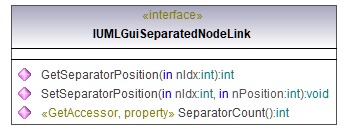

diagram

hierarchy

documentation

This node link represents a graphical object on a UModel diagram which can be separated into two or more parts by one or more either horizontal or vertical lines.

For each line, the position of the separator is stored in this node.

This node type is used for example by CombinedFragments, ActivityPartitions and States with regions.

Operation IUMLGuiSeparatedNodeLink::GetSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	int

Operation IUMLGuiSeparatedNodeLink::SeparatorCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiSeparatedNodeLink::SetSeparatorPosition

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
nPosition	in	int
return	return	void
