Altova FlowForce Server 2025 Advanced Edition

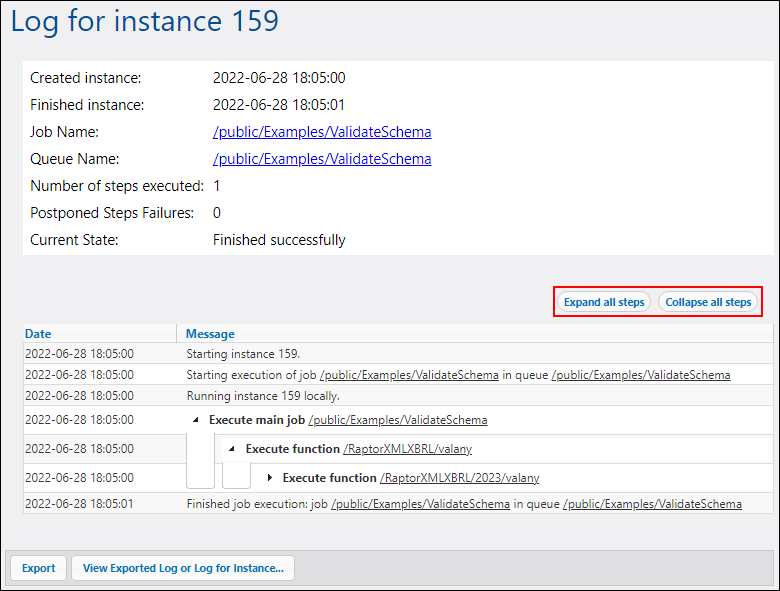

The Log for Instance N page (screenshot below) provides detailed information about a specific job instance. You can open this page in one of the following ways:



Click the instance ID link of a record on the Log View page.

Click the instance ID link of a record in the Recent and Running section of the Home page.

Click View Log from the job configuration page to go to the Log View page. Then click the instance ID link of a record.

fs_instance_log

Reported data

The instance log can report the following categories of data:



Messages related to the execution of job instances, grouped by step. These include:



oMessages related to the execution of built-in functions and mappings

oResults of steps that run the compute and compute-string functions

oError messages that lead to retry in the Execute with success/failure handler step or to job failure



Information about elapsed time after step execution.

Iterations of for-each steps.

Information about how many times the job has been retried. For details, see Retry on Error.

Information about streams produced by executing mappings or by the commandline function.



Export and view log entries

The Export button creates a .zip archive of all data associated with the current log instance.



To view the previously exported main log (.json file) or logged instance (a .zip archive or a .json file extracted from that .zip archive), click the View Exported Log or Log for Instance button. When you view the exported log or instance log, some links in the records (e.g., instance ID links, links to jobs) might lead to an error page, because these links are not in the exported file. When you have finished viewing the instance log loaded from the file, click Close Exported Log View.



Expand/collapse all steps

FlowForce Server allows you to show or hide information about an instance, which can help you get detailed information about this instance or only a general overview of the instance, respectively (see red rectangle in screenshot above).
