Altova MapForce 2025 Professional Edition

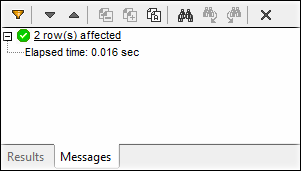

The Messages tab of the DB Query pane provides information about the last executed SQL statement(s) and can display errors and warnings.

dbquery_messages

Toolbar buttons

You can use different filters to customize the view of the Messages tab. The buttons at the top of the Messages tab (screenshot above) are used to navigate messages, copy text to the clipboard, and hide certain parts of the message. When you right-click anywhere inside the Messages tab, you will also be able to see these options in the context menu.



ic_filter

The Filter button opens a menu in which you can select types of messages you would

like to see in the Messages tab. The following options are possible: Check All, Uncheck All, Summary, Success, Warning, Error, Autoinsertion, and Progress.



The Autoinsertion option refers to messages that appear when SQL statements or SQL constructs are inserted automatically in the SQL Editor. The Progress option informs about the database connection result as well as the outcome of SQL parsing and data-structure loading.

ic_next-SQL

The Next button jumps to and highlights the next message.

ic_previous-SQL

The Previous button jumps to and highlights the previous message.

ic_copy-msg

Copy selected message to the clipboard

ic_copy-msg_children

Copy selected message including its children to the clipboard

ic_copy-all-msg

Copy all messages to the clipboard

ic_find-msg

The Find command opens the Find dialog box that allows you to configure search criteria.

ic_find-prev-msg

The Find previous command jumps to the previous occurrence of the search string specified in the Find dialog box.

ic_find-next-msg

The Find next command jumps to the next occurrence of the search string specified in the Find dialog box.

ic_clear-msg

The Clear button removes all messages from the Message tab of the SQL Editor.
