Interface IUMLGuiTimingDiagramLifeline

diagram

hierarchy

typedElements

Interface IUMLGuiTimingDiagram

Operation

AddUMLGuiTickMark

documentation

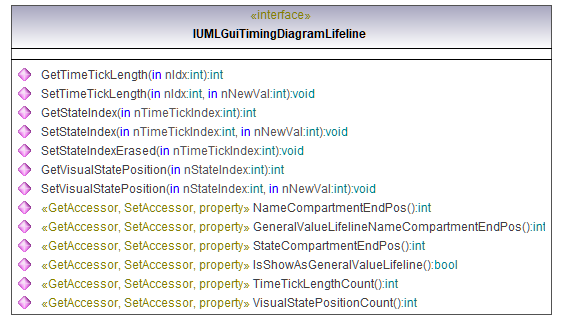

A IUMLGuiTimingDiagramLifeline is the graphical representation of a lifeline on a timing diagram. This type of lifeline has several options to display its data and provides access to these through its numerous properties.

Operation IUMLGuiTimingDiagramLifeline::GeneralValueLifelineNameCompartmentEndPos

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTimingDiagramLifeline::GetStateIndex

parameter

name	direction	type	type modifier	multiplicity	default
nTimeTickIndex	in	int
return	return	int

Operation IUMLGuiTimingDiagramLifeline::GetTimeTickLength

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	int

Operation IUMLGuiTimingDiagramLifeline::GetVisualStatePosition

parameter

name	direction	type	type modifier	multiplicity	default
nStateIndex	in	int
return	return	int

Operation IUMLGuiTimingDiagramLifeline::IsShowAsGeneralValueLifeline

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLGuiTimingDiagramLifeline::NameCompartmentEndPos

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTimingDiagramLifeline::SetStateIndex

parameter

name	direction	type	type modifier	multiplicity	default
nTimeTickIndex	in	int
nNewVal	in	int
return	return	void

Operation IUMLGuiTimingDiagramLifeline::SetStateIndexErased

parameter

name	direction	type	type modifier	multiplicity	default
nTimeTickIndex	in	int
return	return	void

Operation IUMLGuiTimingDiagramLifeline::SetTimeTickLength

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
nNewVal	in	int
return	return	void

Operation IUMLGuiTimingDiagramLifeline::SetVisualStatePosition

parameter

name	direction	type	type modifier	multiplicity	default
nStateIndex	in	int
nNewVal	in	int
return	return	void

Operation IUMLGuiTimingDiagramLifeline::StateCompartmentEndPos

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTimingDiagramLifeline::TimeTickLengthCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTimingDiagramLifeline::VisualStatePositionCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int
