Generating Value-Maps for Hypercube Explicit Dimensions

Home Prev Top Next

This option transforms input data of any type into a valid QName in the target component. In other words, the input string is converted into the prefixed name (QName).

To generate a value-map lookup table for the selected hypercube dimension:

1.Make sure that the dimension values are not visible for the specific hypercube dimension.

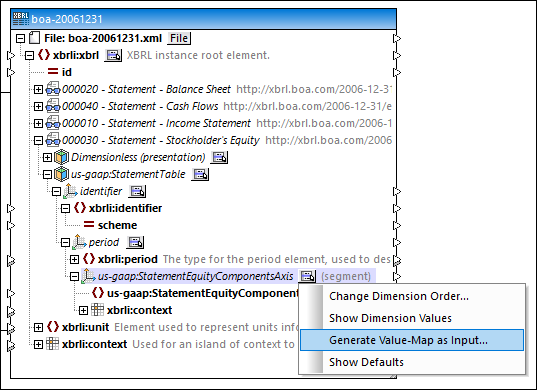

2.Click the icon ic-dim-icon of the specific dimension and select the "Generate Value-Map as input" option in the popup menu.

mf_xbrl_value-maps_01

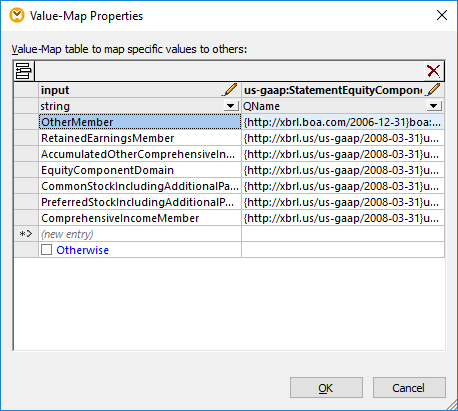

This opens the Value-Map Properties dialog box containing automatically generated input and output values based on the dimension default domain and domain members, as defined in the taxonomy.

mf_xbrl_value-maps_02

3.Edit the input values if necessary, and click OK to insert the value-map component. Note that you can edit the column header text (by double-clicking the header) to make them shorter, or more descriptive if you wish.



This inserts the value-map function, showing the input and output parameter names. The output connector is automatically connected to the domain element of the target.

mf_xbrl_value-maps_03

4.Connect the source item that contains the input data to be transformed, to the input parameter of the function.



For more information about Value-Map components, see Using Value-Maps.
