Use the Repeated split (fixed length) mode when you want to split text into multiple horizontal or vertical fragments of fixed length. The settings applicable to the Repeated split (fixed length) mode are described below.



Orientation

Specifies if the text fragment is to be split horizontally or vertically. Choose "Horizontal" to split the fragment into multiple horizontal sections. Choose "Vertical" to split the fragment into multiple vertical columns. The default orientation is "Horizontal".



Offset

If orientation is set to "Horizontal", this setting specifies the number of lines that each fragment should contain. If orientation is set to "Vertical", this setting specifies the width in characters of each fragment. The default offset is "1". To modify the offset, do one of the following:



Enter a value into the Offset field

Drag the tab on the vertical or horizontal ruler.

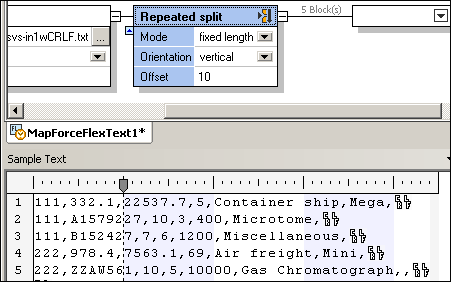

flex-spm-fixed2
