Altova MapForce 2025 Enterprise Edition

To use the FlexText template in MapForce:



1.Start, or switch back to MapForce, and select Insert | Text file.

Dlg_InsertTextComponent

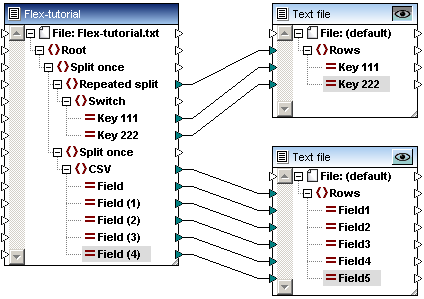

2.Click the Open existing FlexText configuration file... button and select the previously defined FlexText template (Flex-tutorial.mft). The structure of the MapForce component mirrors that of the containers in Design view in FlexText.

flex-tut19

3.Map the various items to the previously defined target components, and click the Output tab to preview the results.

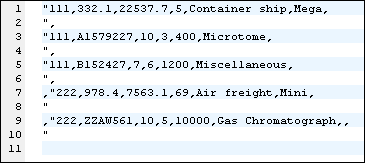

Mapping preview of the top text component:

flex-tut21

Mapping preview of the lower text component:

flex-tut20
