Components are the central elements of any mapping design in MapForce. Visually, components are represented as rectangular boxes in the mapping area. This topic gives an overview of structural and transformation components (see example below). The distinction is based on whether a component has a data structure or is used to transform data. See the description of these types in the subsections below. See also Mapping Fundamentals. Besides structural and transformation components, you can also add comments to your mapping (see Comments below).



Components example

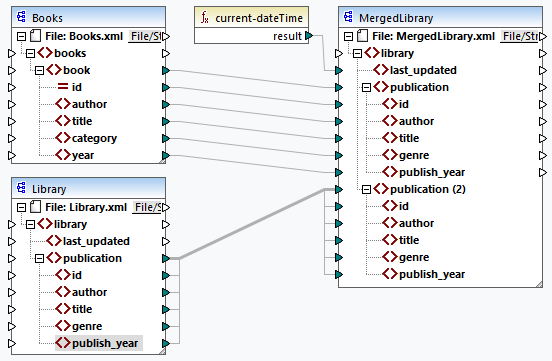

The sample mapping below illustrates two data source components (Books and Library), one data target component (MergedLibrary), and one transformation component (the current-dateTime function).

MF_MapFund_Components1



Structural components

Structural components represent an abstract structure of your data (e.g., an XML file). The list of structural components that can be used as data sources and targets is given in Structural Components. Structural components can read data from some source(s), write data to some target(s), and store data at some intermediary stage in the mapping process (e.g., to preview the data). The table below gives an overview of structural components and their respective toolbar buttons.



Icon

Description

ic-component_schema

XML component

ic-component_txt

Text component (Professional and Enterprise editions)

ic-component_database

Database component (Professional and Enterprise editions for SQL Databases; Enterprise Edition for NoSQL databases)

ic-component_json

JSON component (Enterprise Edition)

ic-component_excel

Microsoft Excel component (Enterprise Edition)

ic-edi

EDI component (Enterprise Edition)

ic-component_xbrl

XBRL component (Enterprise Edition)

mf_ic_binary

Protocol Buffers (Enterprise Edition)



Transformation components

Transformation components help you transform data, store an intermediate mapping result for further processing, replace a value by another value, sort, group, join, and filter your data. You can also add an exception, which stops the mapping process and displays an error when a condition defined by a filter occurs. The table below gives an overview of transformation components and their respective toolbar buttons.



Icon

Description

ic-component_input

Simple input

ic-component_output

Simple output

ic-component_filter

Filter component

ic-component_sort

Sort component

ic-component_storedfunction

Built-in function

ic-component_local_function

User-defined function

ic-component_whereorder

SQL/NoSQL-WHERE/ORDER component (Professional and Enterprise editions)

ic-component_valuemap

Value-Map component

ic-component_variable

Variable

ic-component_wsdl_operation

Web service function (Enterprise Edition)

ic-component_exception

Exception (Professional and Enterprise editions)

ic-constant

Constant

mff_ic_if_else

If-Else Condition

mf_ic_join_button

Join component (Professional and Enterprise editions)



Comments

MapForce allows adding comments as standalone components and as notes under existing components. Comment text is available not only in a mapping, but it is also added to the generated mapping documentation. In the generated mapping documentation, component comments are added directly below the corresponding component, and comment components are part of the Remaining components section.



Comment components

Comment components are free-standing boxes that can display multi-line text and cannot be connected to any other components. To add a comment component, you can select one of the following options:



Select the ic-CommentComp toolbar command, which opens a dialog where you can type your comment.

Select the Insert | Comment menu command, which opens a dialog where you can type your comment.

Double-click the empty area of your mapping, type the # sign, type a comment, and press Enter. The # sign will not appear in the comment box.



To move a comment, drag it to the desired location. To delete a comment, click on the comment box and press the Delete key. An example of a comment component is illustrated below (red rectangular box).

MF_CommentComp02



Component comments

Besides free-standing comment boxes, you can also add comments to any existing components. Such comments are displayed below the component (circled red below).

MF_CommentComp01

To add a comment under an existing component, you can choose one of the following options:



Right-click inside the component and select Edit Comment from the context menu. This opens a dialog where you can enter your comment.

Select a component to which you would like to add a comment. Then select Edit Comment in the Component menu. This opens a dialog where you can enter your comment.



The display of components' comments can be limited to a specified number of lines, which can be defined in the menu Tools | Options | General | Mapping View. For more information, see Options.



To remove a component comment, take one of the following steps:



Double-click the comment, delete all text, and click Enter.

Right-click the comment or inside the component, select Edit Comment from the context menu, delete text, and click OK.



Edit comments

You can edit both types of comments in one of the following ways:



Double-click the text of the comment and start editing directly in the box. Then press Enter.

Right-click the comment box, edit the text in the Edit Comment dialog, and click OK. For component comments, you can also access the Edit Comment dialog by right-clicking inside the component and selecting the Edit Comment option in the context menu.



In this section

This section gives an overview of components and is organized into the following topics:



Add Components

Component Basics

File Paths
