ic-node

Allows you to add a new hierarchical level to the FlexText, and MapForce tree structures. The data that the following node/container contains, is passed on as is.



In the screenshot below, the "All 111 Order No." container is the last container in the top branch.

flex-node1

Click the top-right icon of the container, and select Node from the context menu.

flex-node2

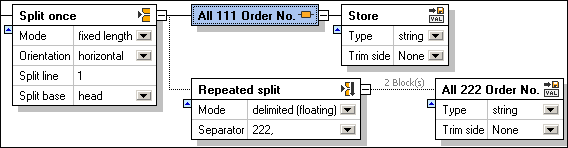

A new container has been added to the right of the current one.



Note:The automatically appended container was then manually defined as "Store as value".

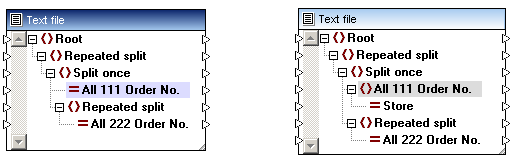

The screenshot below shows both template structures as they appear when inserted into MapForce.

flex-node3

The left component shows the initial structure before adding the new Node.



The right component shows how the component structure has changed. "All 111..." is now a parent item, and a new child item "Store" has been added below it.
