Input Fields, Multiline Input Fields

Accueil Préc Haut Suivant

You can insert an Input Field or a Multiline Input Field in your SPS when you drop a node from the Schema Sources window into Design View. The text that the Authentic View user enters into these fields is entered into the XML node for which the field was created. The content of that node is displayed in the input field or multiline input field.



Editing the properties of input fields

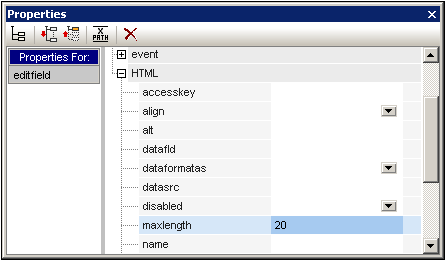

You can modify the HTML properties of input fields by selecting the input field and then modifying its HTML properties in the Properties sidebar (see screenshot below).



WinPropsDEDProps



For example, with the input field selected, in the Properties window select editfield, select the HTML group of properties and the maxlength property. Then double-click in the Value field of maxlength and enter a value.



Note:CDATA sections cannot be inserted into input fields (that is, in text boxes and multiline text boxes). CDATA sections can only be entered within elements that are displayed in Authentic View as text content components.
