Interface IUMLProtocolTransition

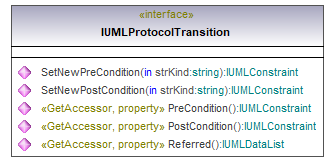

diagram

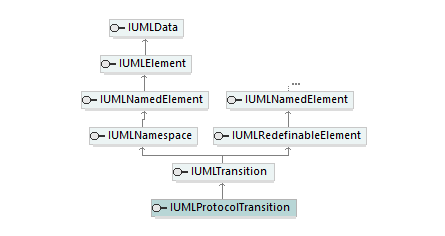

hierarchy

typedElements

Interface IUMLConstraint	Operation	OwningTransition
Interface IUMLDataAll	Operation	OwningTransition

Operation IUMLProtocolTransition::PostCondition

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLProtocolTransition::PreCondition

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLProtocolTransition::Referred

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

Operation IUMLProtocolTransition::SetNewPostCondition

parameter

Operation IUMLProtocolTransition::SetNewPreCondition

parameter
