UModelAPI - IUMLRegion

Interface IUMLRegion

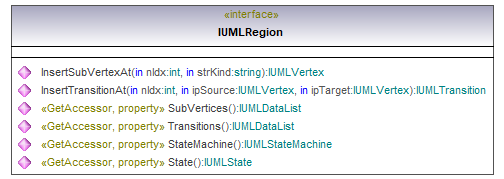

diagram

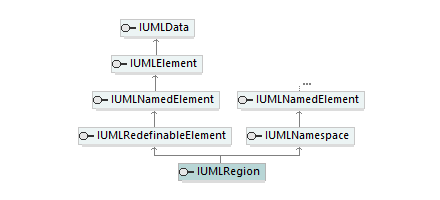

hierarchy

typedElements

Interface IUMLDataAll	Operation	Container InsertRegionAt
Interface IUMLState	Operation	InsertRegionAt
Interface IUMLStateMachine	Operation	InsertRegionAt
Interface IUMLVertex	Operation	Container

Operation IUMLRegion::InsertSubVertexAt

parameter

Operation IUMLRegion::InsertTransitionAt

parameter

Operation IUMLRegion::State

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLState

Operation IUMLRegion::StateMachine

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLStateMachine

Operation IUMLRegion::SubVertices

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLVertex.

Operation IUMLRegion::Transitions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLTransition.
