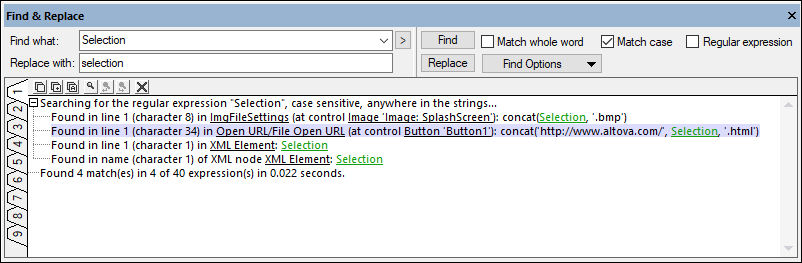

The Find & Replace Pane (screenshot below; see User Interface for its location) enables you to search for text strings in all pages of design or in the current page. The search scope includes XPath expressions and XPath function names, variable names and values, control names and properties, and actions and action groups. You can also replace all instances of the found text string and use regular expression to find text.

Searching for text

To search for text in the design, do the following:

1.In the Find What entry field (see screenshot above), enter the string to find, or use the dropdown list to select a string from one of the last 10 strings. You can also use regular expressions (explained below) to find text.

2.Optionally, narrow or expand the search by, respectively, selecting or deselecting the Match whole word and/or Match case options. If Match whole word is selected, then only the exact words in the text will be matched. For example, if the search term is fit, then only the word fit will be matched; the fit in fitness, for example, will not be matched.

3.Select the scope of the search by toggling on/off the options in the Find Options combo box. You can restrict the search to the current page, and include XPath functions and/or action groups in the search.

4.Click Find or press Enter.

Results of the search

There are nine Result tabs (see screenshot below). Results are displayed in the currently selected Result tab (and overwrite any previous results in that tab). You can switch to a new tab if you want to keep a previous result.

Result tabs provide the following functionality:

•Each instance of a found search term is displayed on a separate line and contains links to the relevant design objects. For example, in the screenshot above, the instance that is highlighted refers to an instance of the search term Selection in an XPath expression that is defined for an Open URL action of a Button control. Clicking the three links take you, respectively, from left, to the action definition, the button control in the design, the XPath expression of the action.

•You can use the Copy icons in the toolbar of the Results tab (see screenshot above) to copy the following to the clipboard: (i) the selected result, (ii) the selected result and its children, (iii) all results.

•The Results tab has its own Find function, which enables you to search the results for a term. Click the Find icon in the toolbar to do this. Navigate these results with the Find Previous and Find Next icons.

•The Clear icon of the Results tab toolbar clears all the results in the current tab.

Replacing text

To replace the search term in the found instances with another text string, enter the new string in the Replace With text box and click Replace. Note that a Replace action might not work if the replaced text causes invalidity, for example, when a replacement in an XPath expression invalidates the expression, or when a replaced style value is not a valid value.

Using regular expressions

You can use regular expressions (regex) to find a text string. To do this, first, switch the Regular expression option on (see Searching for text above). This specifies that the text in the search term field is to be evaluated as a regular expression. Next, enter the regular expression in the search term field. For a brief description of regular expression metacharacters, see the section Regular expression metacharacters below.

Regular expression metacharacters

Given below is a list of regular expression metacharacters.

Representation of special characters

Note the following expressions.
