Altova StyleVision 2025 Enterprise Edition

The Fonts section of the Change Appearance dialog box lets you configure fonts for objects in the Chart window.

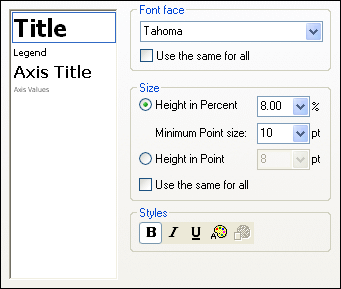

dlg_chart-appearance-fonts



Font settings

You can choose the font face, size, and style for the individual elements displayed in the Chart window. You can define the size as a percentage of the chart size and define a minimum size in points, or specify an absolute value (in points). To apply the same font and/or size to all text elements, activate the respective Use the same for all check box.

The element names in the list box are defined as follows:



Title: The name of a chart

Legend: The key to the colors used in the chart

Labels: The designation of the pieces of a pie chart

Axis Title: The name of the X, Y, and Z axis in a bar or line chart

Axis Values: The units displayed on an axis in a bar or line chart

Tick Values: The units displayed on a gauge chart

Values: The values displayed on the bars of a bar chart
