Generating Value-Maps for Hypercube Explicit Dimensions
This option transforms input data of any type into a valid QName in the target component. In other words, the input string is converted into the prefixed name (QName).
To generate a value-map lookup table for the selected hypercube dimension:
1.Make sure that the dimension values are not visible for the specific hypercube dimension.

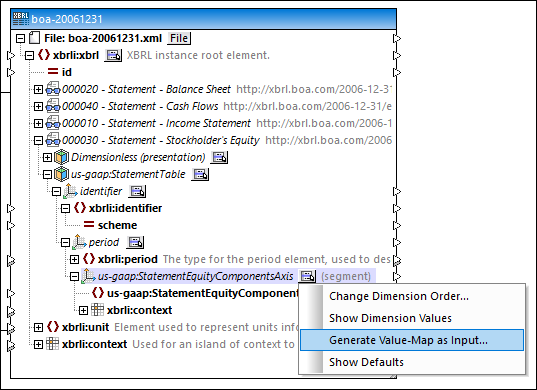

2.Click the icon of the specific dimension and select the "Generate Value-Map as input" option in the popup menu.
![mf_xbrl_value-maps_01](./images/mf_xbrl_value-maps_01.png)

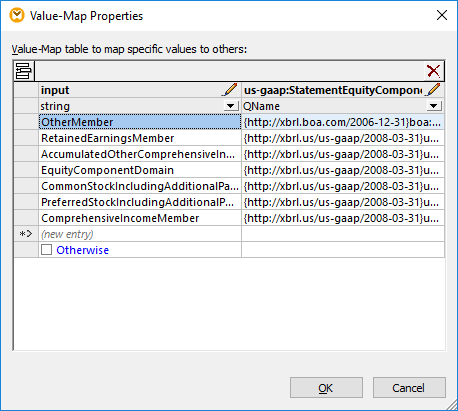

This opens the Value-Map Properties dialog box containing automatically generated input and output values based on the dimension default domain and domain members, as defined in the taxonomy.
![mf_xbrl_value-maps_02](./images/mf_xbrl_value-maps_02.png)
3.Edit the input values if necessary, and click OK to insert the value-map component. Note that you can edit the column header text (by double-clicking the header) to make them shorter, or more descriptive if you wish.
This inserts the value-map function, showing the input and output parameter names. The output connector is automatically connected to the domain element of the target.
![mf_xbrl_value-maps_03](./images/mf_xbrl_value-maps_03.png)
4.Connect the source item that contains the input data to be transformed, to the input parameter of the function.
For more information about Value-Map components, see Using Value-Maps.
